Description

HKS has tested various ways that the danger of high chronic oil temperatures raises with GR Yaris, and HKS has developed a Turn-Flow Type oil cooler that allows continuous track driving. This provides competent oil management and continuous sustained performance.

The tests showed a clear high level of oil management, with about four times as many hours/miles driven in stock conditions. Authentic tests using real vehicles prove the high standards of HKS product.

Development Concept & Features

• Perfect Oil management with output increase modification.
• Provides a cooling performance that allows the vehicle to perform many laps.
• Traditional layout allowing both oil and water temperature control.
• Although Turn-Flow Type Core has small core surface for improved cooling performance.
• Oil aluminum pipes are a highly efficient style that makes effective use of limited space.

Kit Includes

• Oil Cooler Core

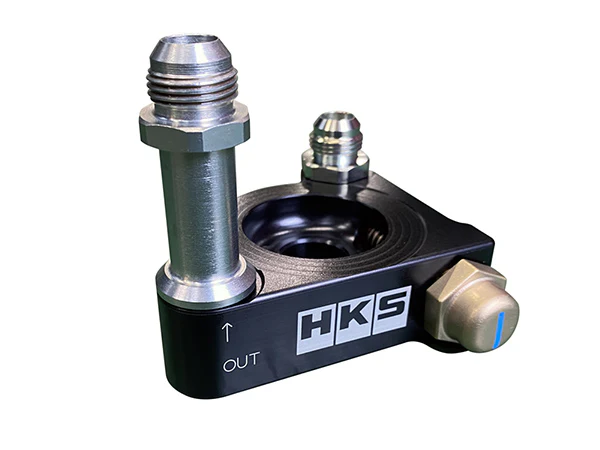

• Billet Aluminum Sandwich Plate

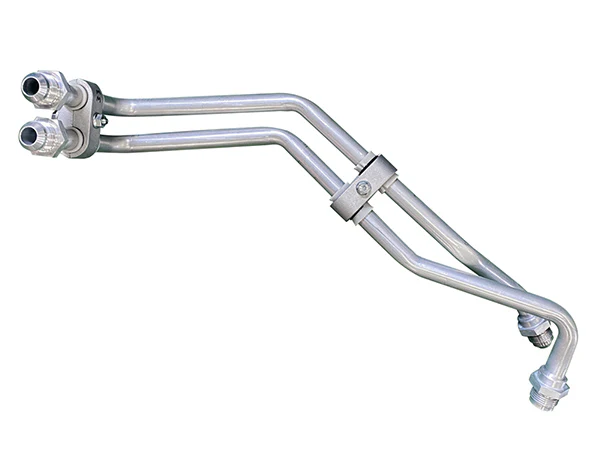

• Oil Cooler Pipe
• Oil Cooler Hose (#AN10)

HKS Test Data

Track Data

Track Name	FSW Short Course
Surface	Asphalt
Length	810m~920m
Turms	4~8
Temperature	25℃

Test Vehicle

Suspension	HIPERMAX S
Exhaust	SUPER TURBO MUFFLER
Intake	HKS Cold Air Intake System
ECU	Power Editor
Turbo	Stock
Intercooler	HKS Intercooler Kit
Oil	HKS SUPER OIL Premium 0W-20

Vehicle	GR YARIS
Model	GXPA16
Engine	G16E-GTS
Model Year	20/09 -
Core Size - Row	412×114×40・10 (turn flow)

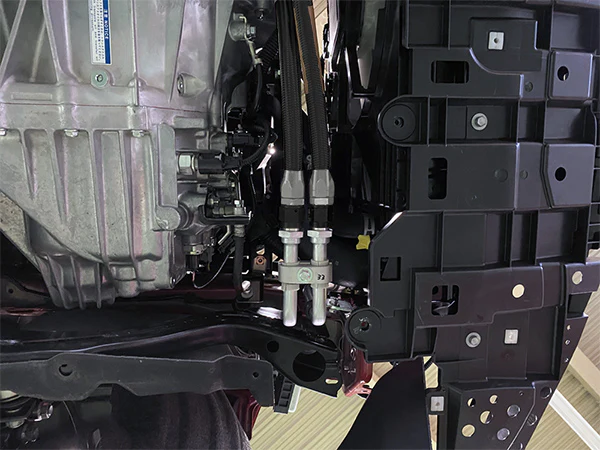

Core Location	In front of the radiator
Type	S type
Hose Size	#10
Code No.	15004-AT113
Manual	Instruction Manual
Remarks	Standard Installation Time: 5~6 hours. Check the oil gauge and adjust the oil level to the correct level.

Check Note

Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
