Features

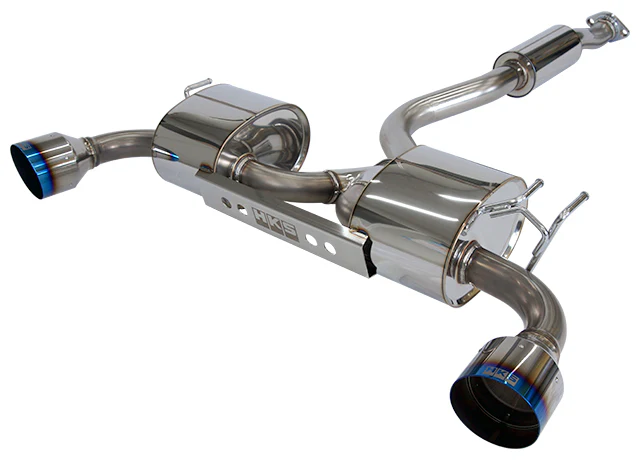

• Valve-less, Dual Tail Tip Layout:

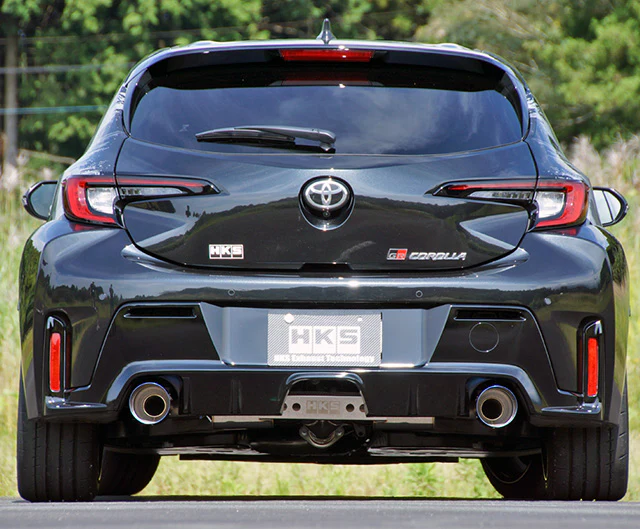

  This exhaust system features a valve-less design and dual tail tip layout. The large-diameter titanium slash tailpipe creates a commanding rear view, leaving a strong impression compared to the stock exhaust.

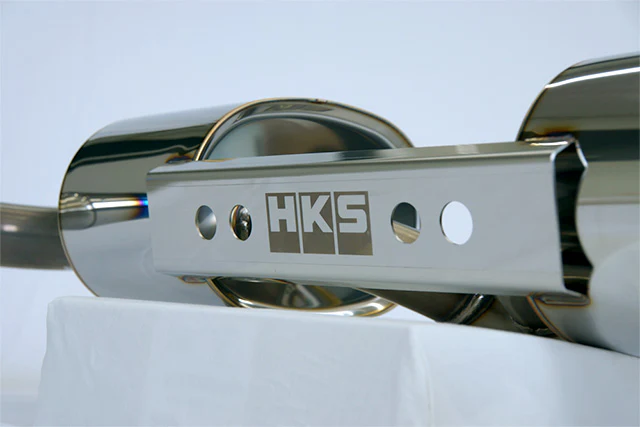

• Sturdy and Aesthetic Bracket Placement:
  Brackets connecting the left and right silencers are positioned at the center notch and feature the HKS logo, ensuring both visual appeal and structural integrity.
• Includes "EXHAUST ERROR CANCELLER":
  HKS provide an "EXHAUST ERROR CANCELLER" to prevent error codes when the valve is not in use, allowing for a worry-free experience.
• Smooth and Enjoyable Driving:
  Experience a comfortable and noise-free ride at low revs. The overall sound quality is robust, delivering a deep bass sound that intensifies as the revs increase, providing a powerful auditory experience

Cert. No.	JQR30232128



Vehicle	GR COROLLA
Model	GZEA14H
Engine	G16E-GTS
Model Year	22/12 -



Shape of muffler		Ti (Titan) (LEGAMAX Sports)
Main material		S304
Diameter of tip		119 L&R
Diameter of center pipe		74.7 - 60.5 x 2 (*1)
Close noise level	Stock	88/88
	HKS	91/90
About road clearance(*2)	Clearance	135mm

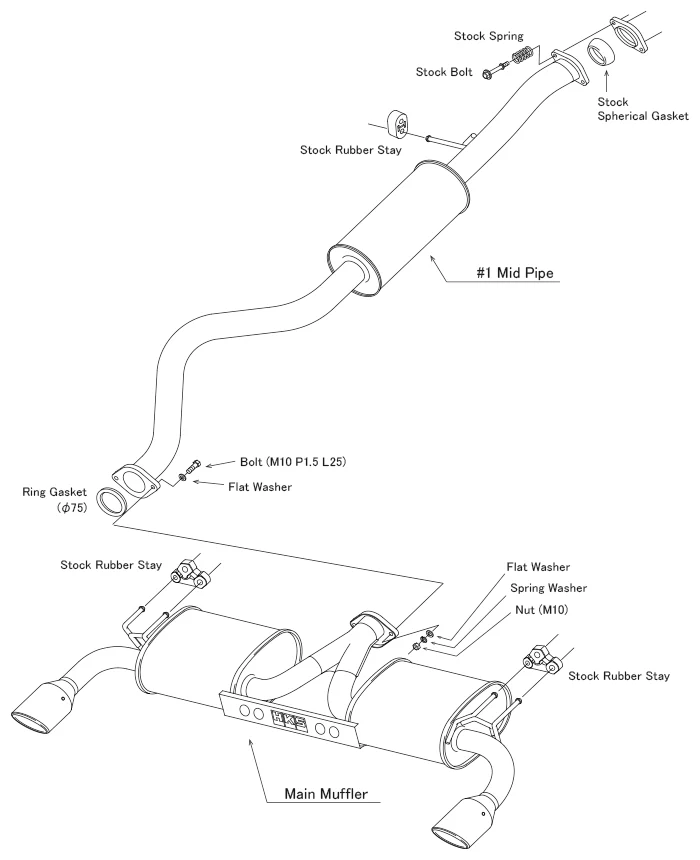

	Portion of the kit	Exhaust mid pipe
	Remarks
Product Weight		18.0kg

Remarks

• The minimum ground clearance will not change even after installing the product. (at Undercover)
• Incompatible with "MORIZO Edition".
• Incompatible with 2025 facelift model.

About HKS Muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.

Fitment

This product is made to fit the following vehicles:

• 2022+ Toyota GR Corolla

If you're unsure whether this will fit your vehicle, contact our team of experts via email at support@zerooffset.com.au and send through a few photos of the car for us to verify fitment.

Check Note

Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
