R TYPE INTERCOOLER & PIPING KIT for CIVIC TYPE-R FL5

Features

Intercooler Core

• A huge 22.4% increase in core’s area leads to immense improvement in cooling.
• The OEM core does not provide sufficient cooling capacity when boosting up, with increased core capacity it will be compatible with everything from boosting up to turbo upgrade.
• The core is designed to be also installed with OEM piping

Piping Kit

• Upon enlarging the pipe diameter and smoothing out the inner design in comparison to OEM we are able to increase power output.
• The OEM hose is prone to expand under high boost, but aluminum pipe has completely solved the issue of pressure loss due to hose expansion.
• The aluminum pipe is given a mirror buff finish, and the cast pipe and core feature the HKS logo, which gives a fantastic dress-up look.

Configuration

Core Only

• Intercooler core
• Masking sheet for logo spray

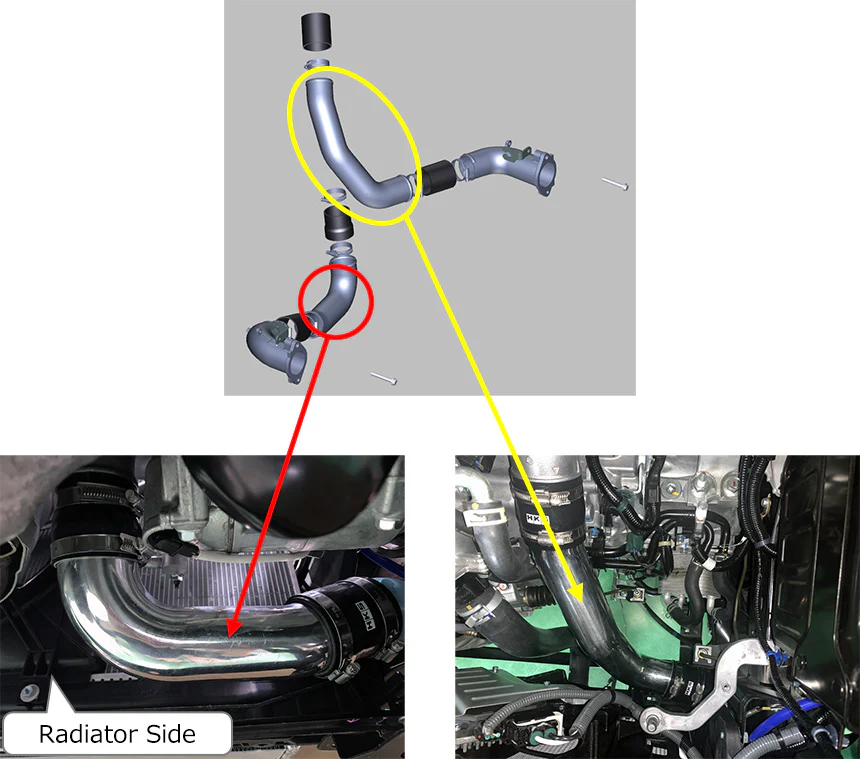

Piping Kit Only

• Aluminum bent pipe (IN/OUT)
• Cast pipe (IN/OUT)
• Silicone hose
• Hose band
• Bracket (IN/OUT)
• Special bolts and nuts

Full Kit

• Core only + piping kit

Important Notes

*1. To install the intercooler ASSY, it is necessary to modify the air guide inside the bumper and relocate the outside air temperature sensor. No modification of the reinforcement is required.
*2. To install the piping, it is necessary to shave the bracket on the vehicle body.
*3. For the FULL KIT, *1 and *2 must be met.

Core Size Comparison

	HKS	Stock
Exterior
Material & Specs	Core Size: 695 x 178 x 100 Core specs: 10 fins, 9 Tubes Tank: Aluminum cast	Core Size: 639 x 158 x 64 Core specs: 11 fins, 10 Tubes Tank: Resin
Performance Data	Power: 245[kW](333[PS]/6500[rpm] Torque: 449.5[Ｎ・m] (45.9[kg・m]）/3260[rpm] Cooling performance: I/C outlet 30.3℃ (7000[rpm]) Cooling efficiency: 88%(7000[rpm])	Power: 243[kW](331[PS]/6420[rpm] Torque: 445.8[Ｎ・m] (45.5[kg・m]）/3360[rpm] Cooling performance: I/C出口56.0℃ (7000[rpm]) Cooling efficiency: 67%(7000[rpm])

Performance Comparison

Piping Comparison

	HKS	Stock
Exterior
Material & specs	in No.1：Aliminum bent pipe (inner diameter D60) in No.2：Aliminum casting (bracket separate) out No.1：Aliminum casting (bracket separate) out No.2：Aliminum bent pipe	in No.1：Rubber hose (inner diameter D55) in No.2：Aliminum casting (bracket separate) out No.1：Resin (with bracket) out No.2：Rubber hose

Vehicle Fitment

This product is made to fit the following vehicles:

• 2022+ Honda Civic FL5

If you're unsure whether this will fit your vehicle, contact our team of experts via email at support@zerooffset.com.au and send through a few photos of the car for us to verify fitment.
