Going beyond just ride comfort or handling performance, a new standard of "Driving Comfort" aims for comfort in ride but also in the peace of mind generated by handling performance and drivability. An uncompromising balance which delivers on all the demands of street driving.

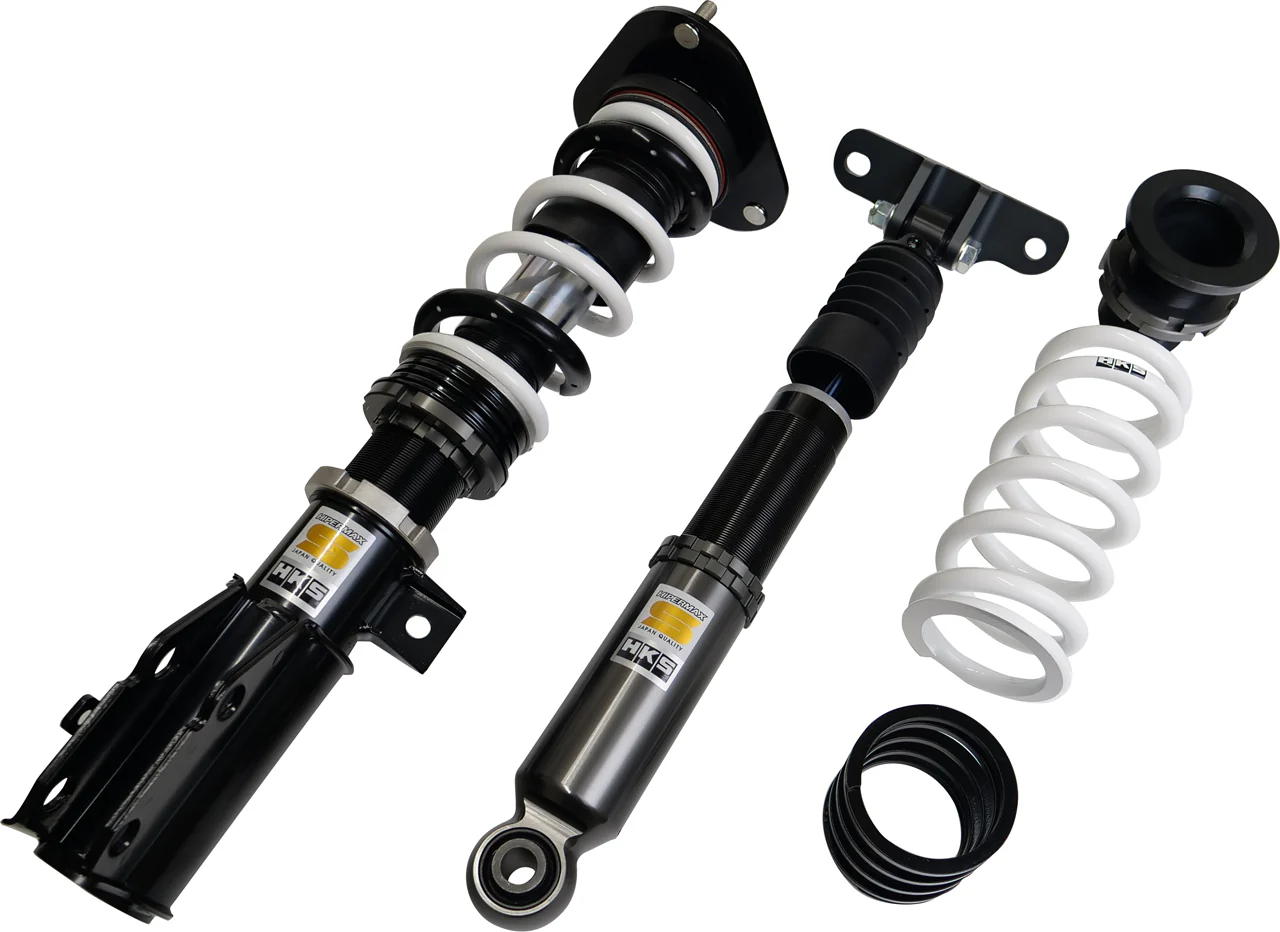

• The popular HIPERMAX S is now available for GR COROLLA.
• We have improved the everyday ride comfort while retaining the excellent running performance of the factory suspension, in pursuit of superior driving comfort.
• The vehicle height has been set to provide both a stylish appearance and a comfortable ride.
• It has the versatility to cover various occasions like daily commuting or weekend drives.
• The product has a 3-year warranty and is available for an overhaul. We have achieved high durability by reviewing the internal parts.
• We also provide after-sales support. You can use the product for a long time.

Application

Engine	G16E-GTS
Model Year	22/12 -
Remarks	Confirmed in RZ grade, Morizo edition not confirmed.

Specification

	FRONT	REAR
Damping force adjustment	30 steps	30 steps
Base valve	-	-
Height adjustable lower bracket	〇	〇
Upper mount	Rubber	Rubber
Inverted/Normal type	Inverted	Normal
Damper/Spring layout	Coilover	Separated
Spring rate change at factory	Impossible	Possible
Damping force adjustment with wire	-	-
Helper spring (Spring rate N/mm)	〇 (7.6)	〇 (19.8)

Ride Height

(mm)		Factory *2	Test data	Adjustable range High - Low *3	Drivable range High - Low *4
FRONT	Ride height *1	658	←	675 ～ 621	675 ～ 623
	Against stock	-14	←	3 ～ -51	3 ～ -49
REAR	Ride height *1	666	←	698 ～　621	698 ～　633
	Against stock	-25	←	7 ～ -70	7 ～ -58

*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.

Kit information

Spring of Full Kit

	F	R
Spring rate N/mm(kgf/mm)	69 ( 7.0 )	88 ( 9.0 )
Free height (mm)	200	200
Spring type	Straight Barrel type	Straight
Recommended range to change spring rate N/mm(kgf/mm)	-	±10 ( 1 )

Specification of damper

	F	R
Damping force (Rebound/Damping)N*	608 / 564	761 / 603
Default position of dial	15	15
Remaining damper stroke (Rebound/Damping)mm	55 / 45	54 / 50

*The value of the damping force is at piston speed of 0.1m/sec.

Setting data

	F				R
	Default	Test	Drivable limit High *	Drivable limit Low *	Default	Test	Drivable limit High *	Drivable limit Low *
Length of case (mm)	317	←	319	297	305	←	330	270
Spring Set length(mm)	228	←	213	243	-	-	-	-
Length to ride hight adjuster (mm)	36	←	53	1	58	←	81	25
Lever ratio	1				1.40(spg) , 1.27(dmp)

*Refer to the above explanation *3 of ride height information for drivable high and low limitations.

Test vehicle information

		F	R
Vehicle weight kg		861 　(880)	606 　(590)
Tire size (Air pressure) kPa		235 / 40 - 18 ( 240 )	235 / 40 - 18 ( 230 )
Wheel size		8.5 JJ × 18 inset 30	8.5 JJ × 18 inset 30
Alignment (Toe/Camber)	Test data	0 mm / -2°50'	'0 mm / -2°30'
	Standard value	0 ± 2 mm / -1°39' ± 0°45'	in 1 ± 2 mm / -2°07' ± 0°45'

*Test data at HKS.

Vehicle Fitment

This product is made to fit the following vehicles:

• 2022+ Toyota GR Corolla Pre-facelift

If you're unsure whether this will fit your vehicle, contact our team of experts via email at support@zerooffset.com.au and send through a few photos of the car for us to verify fitment.

Check Note

Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
